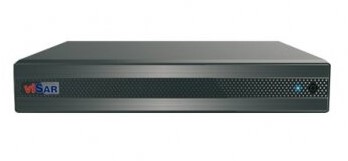

Hybrid DVR with ability to connect analog and IP cameras simultaneously. Device support H.265 compression for analog and IP inputs. Total number of supported cameras - 12, where maximum analog camera inputs 8 with ability to add 4 IP cameras, or 8 analog inputs can be changed to 16 IP inputs.
Compression: Standard H.265 High Profile
CPU: Cortex A9
OS: Embedded Linux
Video Input: BNC × 8
Video Resolution: TVI/AHD - 5MP/4MP/3MP/1080P/720P/WD1, CVI - 4MP/3MP/1080P/720P/WD1
IP Input: 8CH (expandable to 16ch)
Video Output: HDMI x 1 (1920×1080/1280×1024/1024×768), VGA × 1 (1920×1080/1280×1024/1024×768), BNC × 1 (CVBS)
Audio Input: RCA × 1
Audio Output: RCA × 1
Record Resolution: 5MP Lite 10fps, 4MP Lite 12fps, 1080P 12fps, 1080P Lite/720P/WD1 25fps
IP Record Resolution: 4MP/3MP/1080P/960P/720P iki 25fps
Playback: 8 CH
Network Interface: RJ45 100Mbps × 1
Accss/Transfer Bandwidth: 60/60Mbps
Network Protocol: TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Mobile Device OS: iOS, Andriod
HDD: SATA × 1, up to 6TB per HDD
RS485: RS485 × 1, connect to PTZ or keyboard
USB: USB 2.0 × 2
Power Supply: DC12V / 2A
Consumption: up to 8W ( without HDD )
Work Environment: -10 - 50 °C
